Modern reproduction harnesses deliver improvements over original equipment through superior materials and engineering advancements unavailable during the muscle car era. Contemporary wire insulation resists heat and chemical exposure better than vintage materials, while upgraded circuit protection prevents damage from electrical faults. Whether you're pursuing concours-correct authenticity or building a restomod with modern amenities, selecting the appropriate wiring system establishes the foundation for trouble-free electrical operation.
American Autowire Factory Fit Reproduction Harnesses
OEM-Accurate Construction and Connector Systems
Factory Fit harnesses replicate original GM wiring specifications with meticulous attention to detail that satisfies judges at concours events. These harnesses utilize correct wire colors, terminal types, and routing configurations that match assembly line production. Original-style cloth or plastic wire covering maintains period-correct appearance while providing improved insulation properties compared to deteriorated factory wiring.
Reproduction connectors feature proper pin configurations and housing designs that mate directly with factory components including switches, gauges, and lighting assemblies. This eliminates the splicing and adapter requirements common with universal harness kits, reducing installation time while preventing the connection failures that plague modified wiring. Correct connector retention ensures positive electrical contact that resists vibration-induced intermittent faults.
Application-Specific Harness Configurations
Chevelle electrical systems vary significantly based on model year, engine options, and factory equipment packages. Manual transmission vehicles use different neutral safety switch wiring than automatic-equipped models, while air conditioning systems require additional circuits and relay provisions. Factory Fit harnesses account for these variations through application-specific construction that includes only the circuits your particular vehicle requires.
Proper harness selection demands identifying your Chevelle's exact configuration including year, body style, engine size, transmission type, and optional equipment like factory gauges, air conditioning, or power accessories. Our technical specialists cross-reference these details against American Autowire's comprehensive application charts to ensure you receive the correct harness with proper connector provisions and circuit capacities.
Classic Update Series Modern Performance Wiring
Enhanced Circuit Protection and Capacity
Classic Update harnesses transform Chevelle electrical systems through modern circuit design that accommodates contemporary accessories while maintaining factory appearance. These kits feature upgraded fuse panels with individual circuit protection for each electrical component, eliminating the minimal fuse coverage that left original systems vulnerable to catastrophic failures from single faults.
Increased wire gauge sizes throughout critical circuits handle higher current demands from modern accessories like high-output alternators, electric fans, and upgraded lighting systems. The enhanced capacity prevents voltage drops that cause dim lights and sluggish accessory operation while reducing heat generation that accelerates wire insulation degradation. Heavy-duty terminals and weatherproof connectors ensure reliable connections that withstand decades of service.
Integration of Modern Accessories and Features
Contemporary conveniences integrate seamlessly with Classic Update systems through dedicated circuits and relay provisions. Power window motors, electric fuel pumps, high-intensity lighting, and aftermarket air conditioning systems receive proper electrical support without overloading existing circuits. Pre-wired relay sockets simplify installation of accessories requiring switched power and heavy current capacity.
The systems include provisions for modern electronic ignition systems, electronic fuel injection controllers, and digital gauge displays that require clean, regulated power supplies. Separate charging system circuits isolate alternator output from accessory loads, preventing the voltage fluctuations that damage sensitive electronic components. Color-coded wiring and comprehensive instruction manuals guide installers through integration of aftermarket equipment.
Battery Components and Power Distribution
Battery Cables and Terminal Hardware
Quality battery cables prevent the voltage drops and starting failures that frustrate classic car owners. Modern replacement cables use larger conductor sizes than many original applications, reducing electrical resistance that robs starter motors of cranking power. Proper cable sizing becomes especially critical with high-compression engines or performance starters that demand maximum current delivery.
Terminal ends require clean, tight connections that resist corrosion and maintain low resistance. Top-post and side-post terminals must match your battery configuration, while proper lug crimping ensures mechanical strength that prevents terminal separation under vibration. Heat-shrink insulation protects connections from moisture intrusion that causes the green corrosion characteristic of failed battery terminals.

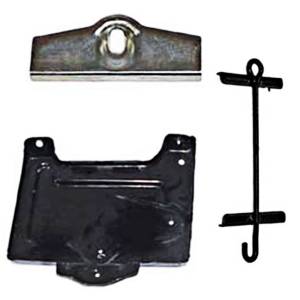

Battery Trays and Hold-Down Hardware
Corroded battery trays represent common rust areas in Chevelle engine bays because battery acid vapors attack surrounding metal. Reproduction trays restore structural integrity while providing proper battery support that prevents damage from vibration. Quality trays feature correct stamping patterns and mounting provisions that align with factory locations.
Proper battery securing prevents movement during acceleration and impacts that can rupture battery cases or damage terminals. Hold-down hardware must provide adequate clamping force without over-tightening that cracks battery cases. Many restorers prefer stainless steel hardware that resists corrosion from battery acid exposure.
Switches and Control Components

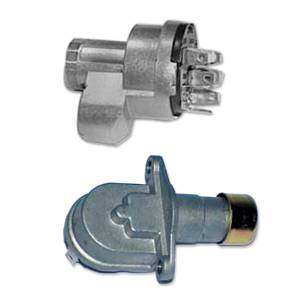

Ignition and Lighting Switches
Ignition switches endure constant use that wears internal contacts and weakens detent springs. Reproduction switches restore proper electrical contact and mechanical feel while maintaining correct appearance for dashboard installations. Quality switches feature robust internal construction that resists the contact erosion common with inferior reproductions.
Headlight and dimmer switches require heavy-duty contacts that handle substantial current flow without overheating. Modern reproductions often include upgraded contact materials that provide longer service life than original equipment. Proper installation demands correct adjustment of dimmer switches to ensure positive detent engagement without requiring excessive pedal pressure.
Accessory and Function Switches
Turn signal, wiper, and accessory switches must provide reliable operation through decades of service. Quality reproductions replicate original appearance while incorporating improved materials that resist the wear and corrosion affecting vintage components. Correct terminal configurations ensure compatibility with existing wiring without requiring harness modifications.
Switch selection requires identifying proper style variations between model years and trim levels. Base model switches differ from SS or luxury trim applications in both appearance and function. Replacing switches with incorrect styles creates authenticity issues for show vehicles while potentially causing electrical incompatibilities.
Ground Strap Systems and Electrical Continuity
Proper grounding represents the most overlooked aspect of classic car electrical systems. Engine-to-chassis ground straps carry substantial current during starting and charging operations, yet these critical connections frequently corrode or separate entirely. Quality ground strap kits restore complete electrical paths that prevent voltage drops and erratic electrical behavior.
Comprehensive grounding includes engine block to frame connections, body to frame straps, and dedicated grounds for accessories mounted on insulated panels. Clean metal-to-metal contact at both ends requires removing paint and corrosion before installation. Star washers or serrated terminals bite through oxidation to maintain long-term conductivity.
Professional Installation Considerations and Best Practices
Successful wiring harness installation demands methodical approach and attention to detail. Complete removal of deteriorated original wiring prevents confusion and eliminates fire hazards from abandoned circuits. Careful routing away from heat sources and sharp edges protects insulation while maintaining proper service loops that accommodate engine movement.
Connector installation requires proper crimping techniques that create gas-tight seals preventing corrosion. Heat-shrink tubing provides additional protection for critical connections in harsh environments. Thorough testing before reconnecting the battery identifies wiring errors before they damage expensive electrical components. Professional installers recommend verifying continuity of all circuits and checking for shorts to ground before energizing the system.
FAQs: Chevelle Wiring Kits
What's the difference between American Autowire Factory Fit and Classic Update wiring harnesses for my Chevelle?
Factory Fit harnesses replicate original GM wiring exactly as your Chevelle left the assembly line, making them ideal for concours restorations or builds prioritizing authenticity. These harnesses use correct wire colors, original-style connectors, and period-appropriate insulation materials. They include only the circuits your vehicle had when new, maintaining stock electrical capacity and fuse protection. Classic Update harnesses modernize your Chevelle's electrical system with enhanced features while maintaining factory appearance. These kits provide individual circuit fusing instead of limited fuse coverage, larger wire gauges for improved current capacity, weatherproof connectors, and provisions for modern accessories like electronic fuel injection, high-output alternators, and aftermarket air conditioning. Classic Update systems include relay provisions and dedicated circuits for accessories that would overload original wiring. Choose Factory Fit for show cars requiring originality, or Classic Update for driver vehicles with modern equipment or performance modifications requiring enhanced electrical capacity.
Can I install a complete wiring harness myself, or should I hire a professional?
Wiring harness installation difficulty depends on your mechanical experience and available tools. Enthusiasts with basic electrical knowledge, patience, and attention to detail can successfully install harnesses using comprehensive instructions provided with quality kits. The process requires 20-40 hours depending on vehicle complexity and your experience level. You'll need basic hand tools, wire strippers, crimping tools, and a multimeter for testing circuits. Critical success factors include carefully labeling and photographing original wiring before removal, following routing diagrams precisely, and testing all circuits before reconnecting the battery. However, several situations warrant professional installation. If your Chevelle has significant modifications, custom accessories, or you're integrating electronic fuel injection, a professional's experience prevents costly mistakes. Shops with experience in classic car electrical systems can typically install harnesses in 8-15 hours, often justifying their cost through time savings and guaranteed results. Consider professional installation if you're uncomfortable with electrical work or lack proper tools.
How do I determine which wiring harness is correct for my specific Chevelle model and year?
Selecting the correct harness requires identifying several key vehicle details. Start with your exact model year—1964-1967 Chevelles use different harnesses than 1968-1972 models due to body redesigns and electrical system changes. Next, identify your body style including two-door hardtop, sedan, wagon, or El Camino, as each uses unique harness configurations. Engine options affect wiring because different alternator mounting positions, gauge packages, and emission controls require specific circuits. Transmission type matters—automatic transmission cars include neutral safety switch circuits absent on manual transmission models. Note all factory options including air conditioning, power windows, console gauges, rear window defogger, and optional lighting packages, as each requires dedicated circuits. American Autowire provides detailed application guides showing required information for each harness. Our technical specialists can verify correct application if you provide your VIN, build sheet, or detailed option list. Ordering the wrong harness results in missing circuits or incorrect connectors requiring extensive modification.
Why are my battery cables corroding, and how can I prevent future problems?
Battery cable corrosion stems from several causes, with battery acid vapors being the primary culprit. Conventional lead-acid batteries release hydrogen sulfide gases during charging that condense on terminals and cable ends, creating the characteristic blue-green corrosion. This corrosion increases electrical resistance, causing voltage drops that prevent proper starting and charging. Loose terminal connections accelerate corrosion by creating gaps where vapors accumulate. Prevention starts with ensuring your battery is properly secured and not overfilled—excess electrolyte sloshes out during driving, spreading acid throughout the engine bay. Use terminal protector sprays or dielectric grease on cleaned connections to seal against vapor intrusion. Consider upgrading to maintenance-free or AGM batteries that produce minimal gassing. Install proper cable ends with adequate crimping—poorly crimped terminals develop high resistance that generates heat accelerating corrosion. Replace corroded cables rather than attempting to clean them, as corrosion typically extends inside cable insulation causing internal resistance. Inspect battery trays for acid damage and replace deteriorated units to prevent structural problems.
What causes intermittent electrical problems in classic Chevelles, and how do I diagnose them?
Intermittent electrical issues typically result from poor ground connections, corroded terminals, or damaged wire insulation. Ground problems cause the most frustration because symptoms appear randomly when vibration temporarily completes or breaks electrical paths. Start diagnosis by verifying all major ground points including engine to chassis straps, body to frame connections, and component-specific grounds. Clean connection points to bare metal and ensure tight hardware. Corroded connectors create high resistance that causes voltage drops—wiggling suspect connectors while monitoring affected circuits often reveals problem areas. Damaged insulation allows wires to contact chassis or other wires intermittently, creating shorts that blow fuses or cause erratic operation. Inspect harnesses where they pass through firewalls, around door hinges, and near hot exhaust components. Age-related insulation brittleness causes wires to crack and expose conductors. Bulkhead connectors deserve special attention because their multiple terminals develop corrosion affecting numerous circuits simultaneously. Use a multimeter to test for continuity and resistance in suspect circuits. Professional diagnosis may require systematic circuit testing, though many intermittent problems resolve through methodical ground inspection and connector cleaning.
